Machine Learning for
Astroparticle Physics

A Crash-Course in Simulation-Based Inference

Lecture 4b: Data embedding with CNNs

Christoph Weniger — University of Amsterdam (GRAPPA)

Today's Roadmap

1. Motivation
From colour channels
to semantic channels
→
2. Convolutions
The operation, multiple
channels, kernels, ReLU, pooling
→
3. Architectures
LeNet-5, ResNet,
skip connections
→
4. Interpreting CNNs
What do networks
actually learn?
The thread: In Lectures 3 & 4 we built fully connected neural networks.
Today we learn how convolutional layers exploit spatial structure to go from pixels to semantics.

Brief History — From Biology to Deep Learning

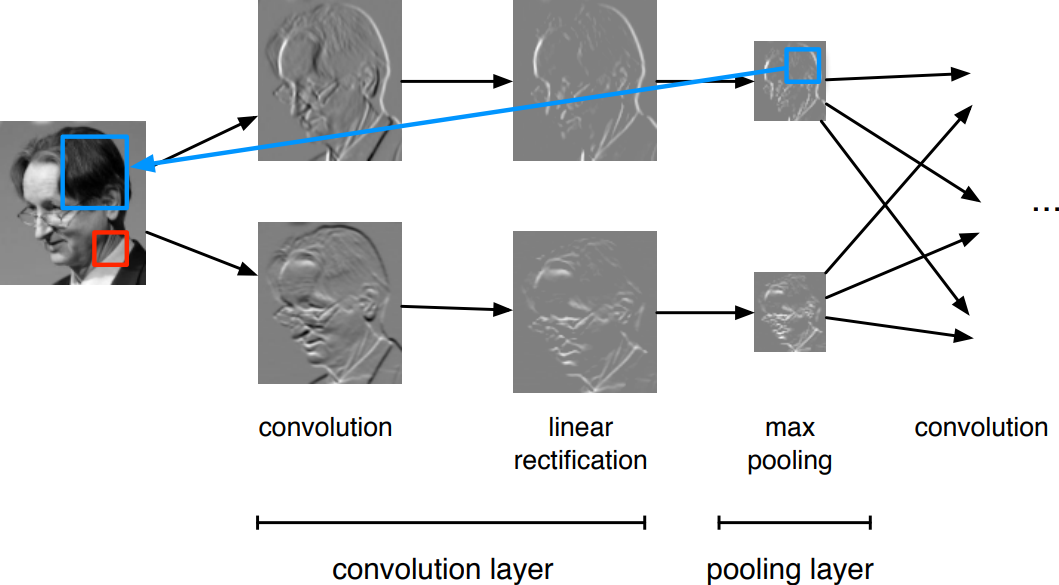

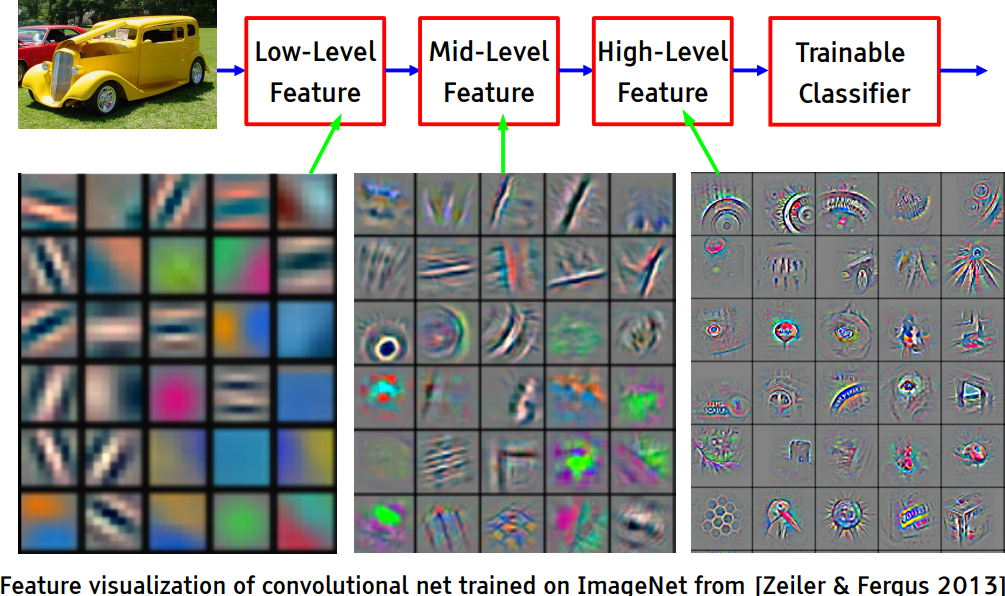

Hierarchical feature composition in CNNs.

  • 1959–62 — Hubel & Wiesel discover hierarchical receptive fields in the visual cortex.
  • 1980 — Fukushima's Neocognitron: first neural hierarchy for visual pattern recognition.
  • 1986 — Rumelhart et al. introduce backpropagation for training multi-layer networks.
  • 1990 — LeCun trains convolutional networks end-to-end on handwritten digits.
  • 2012 — AlexNet wins ImageNet by a large margin → deep learning revolution.

↓ Scroll down for details on each milestone.

Visual Perception — Hubel & Wiesel, 1959–1962

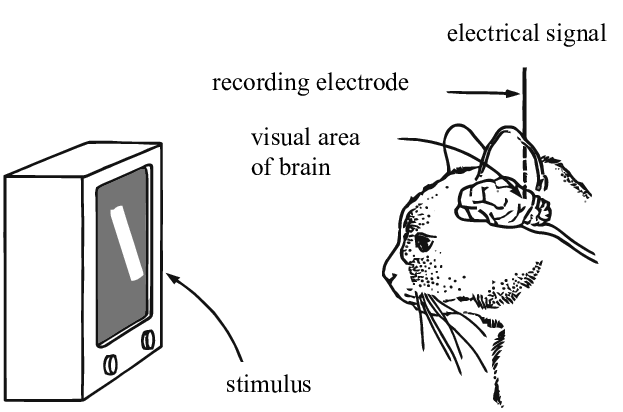

  • David Hubel and Torsten Wiesel discover the neural basis of visual perception.
  • Awarded the Nobel Prize of Medicine in 1981 for their discovery.
  • Key insight: neurons in the visual cortex respond to specific oriented edges within a local receptive field.

Receptive Fields — Hubel & Wiesel

Simple cells

Complex cells

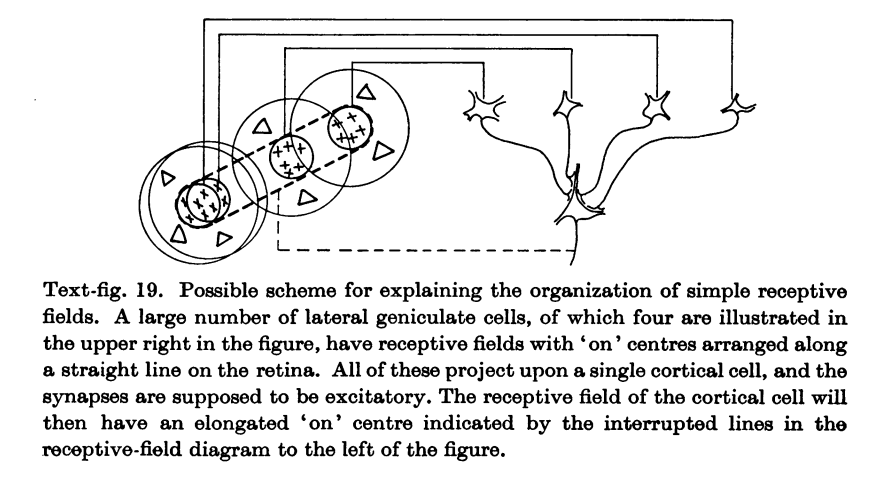

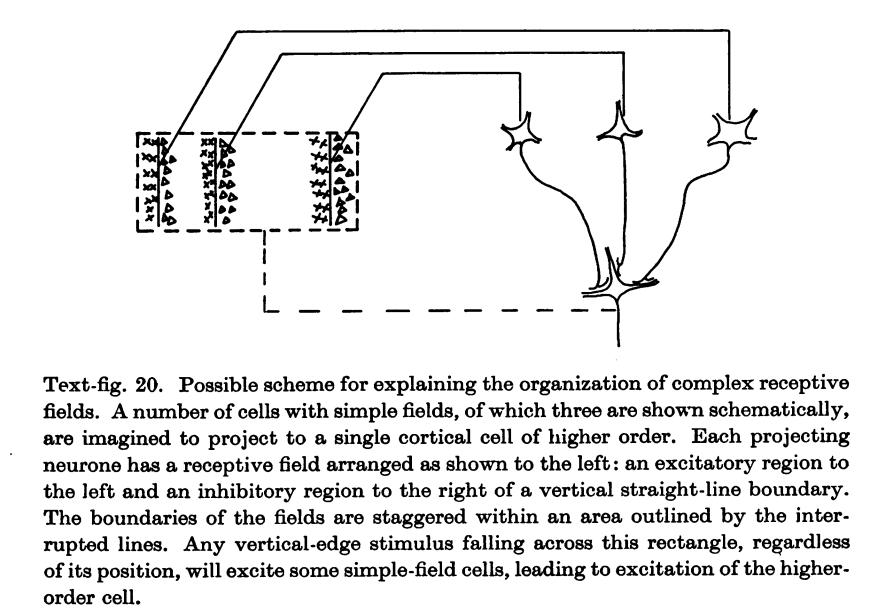

Simple cells respond to oriented edges at specific positions. Complex cells pool over simple cells, gaining positional invariance — a precursor to pooling layers!

Credits: Hubel and Wiesel, Receptive fields, binocular interaction and functional architecture in the cat's visual cortex, 1962.

Neocognitron — Fukushima, 1980

  • Fukushima proposes a direct neural network implementation of the hierarchy model of Hubel and Wiesel.

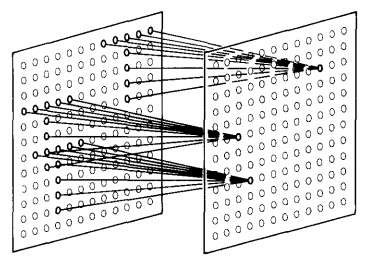

  • Built upon convolutions and enables the composition of a feature hierarchy.
  • Biologically-inspired training algorithm, which proves to be largely inefficient.

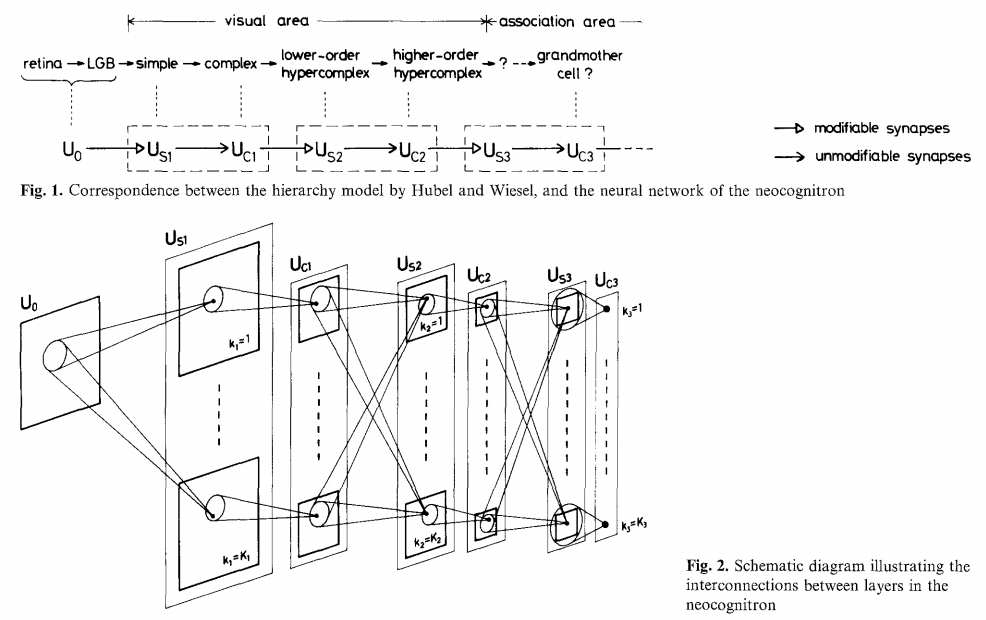

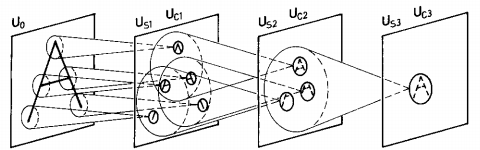

Feature hierarchy

Credits: Kunihiko Fukushima, Neocognitron: A Self-organizing Neural Network Model, 1980.

Backpropagation — Rumelhart et al. 1986

  • Rumelhart and Hinton introduce backpropagation in multi-layer networks with sigmoid non-linearities and sum of squares loss function.
  • They advocate for batch gradient descent in supervised learning.
  • Discuss online gradient descent, momentum and random initialization.
  • Depart from biologically plausible training algorithms.
Key shift: mathematical optimisation replaces biological plausibility.

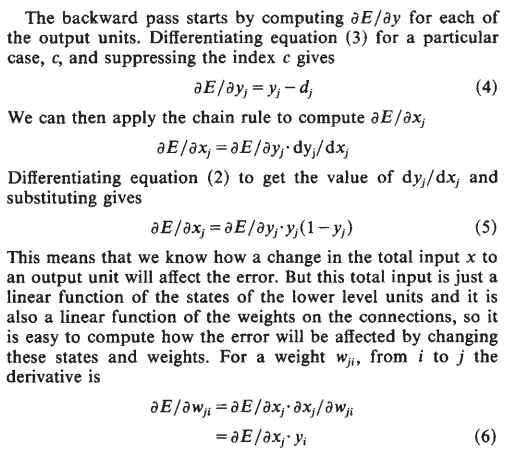

Credits: Rumelhart et al, Learning representations by back-propagating errors, 1986.

Convolutional Networks — LeCun, 1990

  • LeCun trains a convolutional network by backpropagation.
  • He advocates for end-to-end feature learning in image classification.

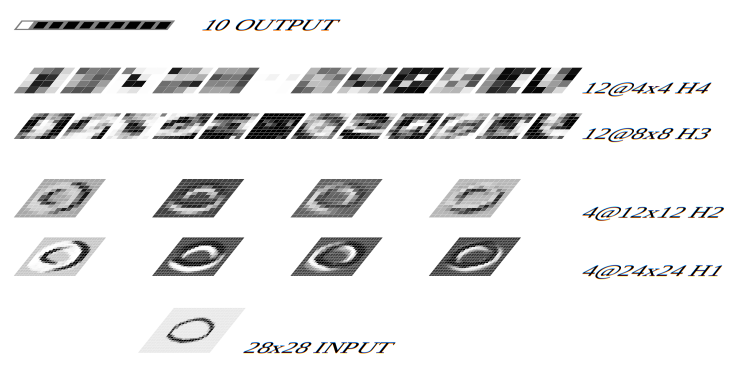

Credits: LeCun et al, Handwritten Digit Recognition with a Back-Propagation Network, 1990.

AlexNet — Krizhevsky et al. 2012

  • Krizhevsky trains a convolutional network on ImageNet with two GPUs.
  • 16.4% top-5 error on ILSVRC'12, outperforming all other entries by 10% or more.
  • This event triggers the deep learning revolution.

Classification with a Neural Network

1. A normalised distribution from logits. An MLP maps the input to \(K\) raw scores (logits) \(z_1, \ldots, z_K\); the softmax turns them into a probability distribution over classes:

\[q_\phi(\theta = k \mid \mathbf{x}) = \frac{e^{z_k}}{\sum_{j=1}^{K} e^{z_j}}, \qquad q_\phi \geq 0, \quad \sum_k q_\phi = 1.\]

2. The NLL loss is just multi-class cross-entropy. Minimising the negative log-likelihood over simulated pairs \((\theta_n, \mathbf{x}_n)\) is exactly the cross-entropy loss — a different name for the same maximum-likelihood objective:

\[\mathcal{L}(\phi) = -\frac{1}{N}\sum_{n=1}^{N} \log q_\phi(\theta = \theta_n \mid \mathbf{x}_n).\]

So the inference head here is trivial. What is now tricky is the embedding network: turning a large colour image (\(\mathbf{x} \in \mathbb{R}^{3 \times 128 \times 128}\) — thousands of pixels) into something an MLP can digest (e.g. a 1024-vector). That something is the convolutional neural network.

Convolution Operations

The core building block of CNNs.

What Is a Digital Image?

A colour image is a 3D tensor: 3 channels (Red, Green, Blue) × height × width. Each channel is a grayscale intensity map.

Shape in PyTorch: (batch, 3, H, W) — e.g. a 64×64 RGB image is (1, 3, 64, 64)

From Colour Channels to Semantic Channels

  • An RGB image has 3 channels that encode colour at high spatial resolution. Each pixel is a mix of red, green, and blue.
  • A CNN transforms these into many channels that encode learned semantic concepts (for instance edges, shapes, textures, or anything else useful) at lower resolution. This is the key idea behind convolutional neural networks.
  • Above we show idealised examples. In CNNs semantics is distributed across many channels.

2D Convolution — The Basic Idea

A small kernel slides across the input. At each position: element-wise multiply, then sum.

2D Convolution — Multiple Input Channels

The kernel spans all input channels. At each position: multiply per channel, sum everything → one output value.



2D Convolution — Mathematical Definition

\[\mathbf{o}_{b,d,j,i} = \sum_{c=0}^{C-1} \sum_{n=0}^{h-1} \sum_{m=0}^{w-1} \mathbf{x}_{b,c,\,j+n,\,i+m} \cdot \mathbf{u}_{d,c,n,m}\]

\(\mathbf{x} \in \mathbb{R}^{B \times C \times H \times W}\) (input), \(\mathbf{u} \in \mathbb{R}^{D \times C \times h \times w}\) (kernels), \(\mathbf{o} \in \mathbb{R}^{B \times D \times H' \times W'}\) (output)

\(B\) batch, \(C\) input channels, \(D\) output channels (number of kernels), \(h \times w\) kernel size

\(H' = H - h + 1\), \(W' = W - w + 1\) (without padding)

In PyTorch: nn.Conv2d(in_channels=C, out_channels=D, kernel_size=(h, w))

2D Convolutions — Full Picture

\[\mathbf{o}_{b,d,j,i} = \sum_{c=0}^{C-1} \sum_{n=0}^{h-1} \sum_{m=0}^{w-1} \mathbf{x}_{b,c,\,j+n,\,i+m} \cdot \mathbf{u}_{d,c,n,m}\]

\(\mathbf{x} \in \mathbb{R}^{B \times C \times H \times W}\), \(\mathbf{u} \in \mathbb{R}^{D \times C \times h \times w}\), \(\mathbf{o} \in \mathbb{R}^{B \times D \times H' \times W'}\)

Here: \(B\) batch size, \(C{=}3\) input channels, \(D{=}2\) output channels / number of kernels, \(H{=}4, W{=}5\) input image size, \(h{=}w{=}3\) kernel size, \(H'{=}H{-}h{+}1{=}2, \; W'{=}W{-}w{+}1{=}3\) output image size

In PyTorch: conv = nn.Conv2d(in_channels=3, out_channels=2, kernel_size=3)

2D Convolutions — Kernel Explorer

Input image (64×64×3)
Kernel (3×3 per channel) — click cells to edit
Output (64×64×1)
  • Each kernel has \(C \times h \times w\) parameters and produces one output channel — a feature map. Here \(C{=}h{=}w{=}3\).
  • The kernel sums over all input channels → one scalar per position.
  • ReLU(\(x\)) = max(0, \(x\)) discards negative responses — try it with a gradient kernel to select one edge direction.
  • MaxPool 2×2 coarse-grains spatial information: keeps the strongest response in each 2×2 block, halving the resolution.
  • The kernels here are just examples. In a CNN, kernels are learned — not hand-crafted.

Why ReLU?

What it does: ReLU(x) = max(0, x) — keeps positive values, sets negative to zero.

Each conv kernel responds positively and negatively. ReLU keeps only the positive activations → the kernel becomes a feature detector that fires when its pattern is present.

Why we need it: A convolution is a linear operation. Stacking linear layers gives another linear layer — no gain in expressiveness.

ReLU breaks the linearity. With nonlinearity between layers, deeper networks can represent increasingly complex features.

The building block: Conv → ReLU → Pool is the standard unit. Conv extracts, ReLU selects, Pool coarsens.

Max Pooling — Coarse-Graining Spatial Information

MaxPool 2×2 takes the maximum in each 2×2 block. Applied independently per channel. No learned parameters.


\(\displaystyle \mathbf{o}_{b,c,j,i} = \max_{n < p,\, m < q} \mathbf{x}_{b,c,\,pj+n,\,qi+m}\)  —  here \(p = q = 2\). In PyTorch: nn.MaxPool2d(2)

From Pixels to Semantics

CNNs trade spatial resolution for semantic richness: resolution goes down, abstraction goes up.

3 × 32 × 32 Conv + ReLU + Pool ⋮ 16 × 16 × 16 Conv + ReLU + Pool ⋮ 32 × 8 × 8 Flatten 2048 Linear + ReLU 128 Linear ... 10 classes
Input: raw pixel values
\[\mathbf{v}_{i,j}^{(0)} = \alpha_r \,\mathbf{e}_{\text{red}} + \alpha_g \,\mathbf{e}_{\text{green}} + \alpha_b \,\mathbf{e}_{\text{blue}}\]

Each pixel is a 3-vector of colour intensities.

After Conv+ReLU+Pool: low-level features
\[\mathbf{v}_{i,j}^{(1)} = \alpha_1 \,\mathbf{e}_{\text{vert. edge}} + \alpha_2 \,\mathbf{e}_{\text{green area}} + \alpha_3 \,\mathbf{e}_{\text{horiz. gradient}} + \cdots\]

16 learned feature channels — edges, colour gradients, textures.

Deeper layers: higher-level features
\[\mathbf{v}_{i,j}^{(2)} = \alpha_1 \,\mathbf{e}_{\text{circle}} + \alpha_2 \,\mathbf{e}_{\text{corner}} + \alpha_3 \,\mathbf{e}_{\text{stripe pattern}} + \cdots\]

32 channels — compositions of edges become shapes and textures.

Output: class scores
\[\mathbf{o} = (s_{\text{airplane}},\; s_{\text{car}},\; s_{\text{bird}},\; \ldots,\; s_{\text{truck}})\]

MLP maps the 2048-dim feature vector to 10 class scores.

Anatomy of a CNN: LeNet-5

import torch.nn as nn, torch.nn.functional as F
class LeNet5(nn.Module):
def __init__(self):
super().__init__()
self.conv1 = nn.Conv2d(1, 6, 5) # W: 6×1×5×5
self.conv2 = nn.Conv2d(6, 16, 5) # W: 16×6×5×5
self.fc1 = nn.Linear(16*4*4, 120) # W: 120×256
self.fc2 = nn.Linear(120, 84) # W: 84×120
self.fc3 = nn.Linear(84, 10) # W: 10×84
def forward(self, x):  # x: 1×28×28
x = F.relu(self.conv1(x)) # → 6×24×24
x = F.max_pool2d(x, 2) # → 6×12×12
x = F.relu(self.conv2(x)) # → 16×8×8
x = F.max_pool2d(x, 2) # → 16×4×4
x = x.flatten(1) # → 256
x = F.relu(self.fc1(x)) # → 120
x = F.relu(self.fc2(x)) # → 84
x = self.fc3(x) # → 10
return x
Click a code line to explore
Each line maps to a specific mathematical operation. Click any highlighted line on the left to see what it does, the math behind it, and how many parameters it has.

LeNet-5 — Details

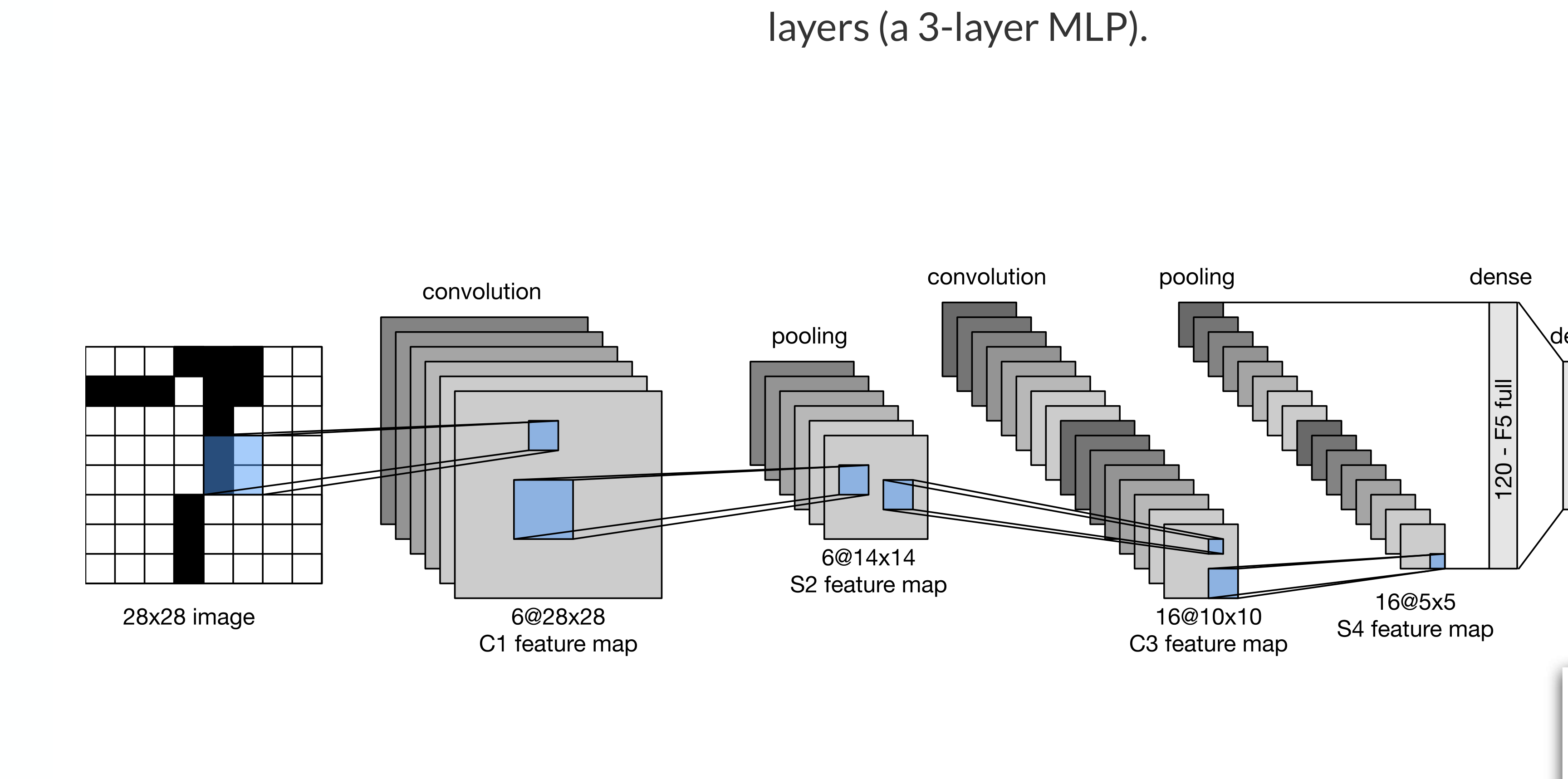

  • Architecture: two convolution+pooling stages for feature extraction, followed by a 3-layer MLP for classification. Input: 1×28×28 grayscale image. Output: 10 class scores (digits 0–9).
  • Dimension flow: 1×28×28 → Conv(5) → 6×24×24 → Pool(2) → 6×12×12 → Conv(5) → 16×8×8 → Pool(2) → 16×4×4 → flatten → 256 → FC → 120 → FC → 84 → FC → 10. The spatial dimensions shrink while the number of channels grows.
  • Parameter count per layer: conv1: 156, conv2: 2,416, fc1: 30,840, fc2: 10,164, fc3: 850. Total: ~44k. Note that the vast majority of parameters are in the fully connected layers, not the convolutions.
  • Why convolutions? A fully connected first layer on a 28×28 image would need 784×n parameters. Conv2d(1,6,5) achieves the same spatial coverage with only 156 parameters by exploiting weight sharing and locality.
  • Historical note: LeNet-5 was designed for handwritten digit recognition (MNIST). It was one of the first successful deep CNNs and established the conv→pool→fc pattern still used today.
  • Reference: LeCun et al., Gradient-Based Learning Applied to Document Recognition, Proc. IEEE 1998.

Modified Convolution Operations

Convolution operations can be modified in a few ways that are important for deep learning:

  • The padding specifies the size of a zeroed frame added around the input. Useful to preserve spatial dimensions.
  • The stride specifies a step size when moving the kernel. Useful to reduce spatial dimensions.
  • The dilation expands the kernel support by inserting zeros between coefficients. Increases the receptive field without adding parameters.

↓ Scroll down for details on each.

Credits: Francois Fleuret, EE559 Deep Learning, EPFL; Dumoulin and Visin, 2016.

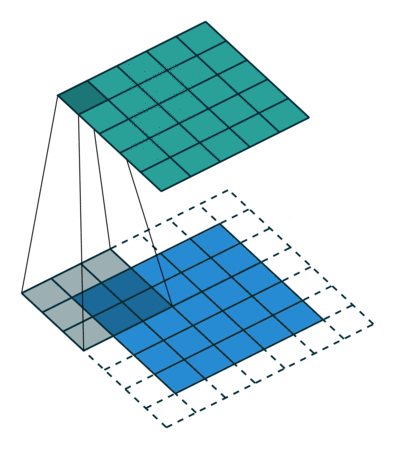

Padding

Padding is useful to control the spatial dimension of the feature map, for example to keep it constant across layers.

No padding

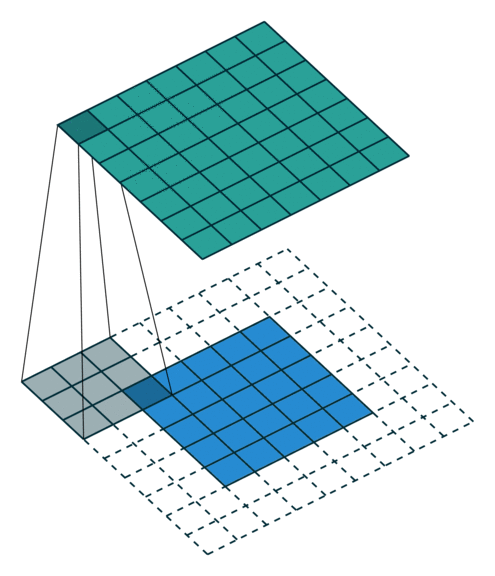

With padding

Same padding, no strides

Credits: Dumoulin and Visin, A guide to convolution arithmetic for deep learning, 2016.

Stride

Stride is useful to reduce the spatial dimension of the feature map by a constant factor.

No padding, strides

Credits: Dumoulin and Visin, A guide to convolution arithmetic for deep learning, 2016.

Dilation

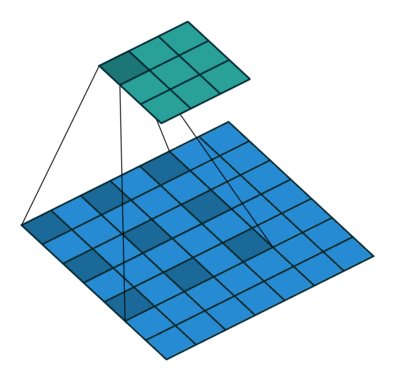

The dilation modulates the expansion of the kernel support by adding rows and columns of zeros between coefficients.

Having a dilation coefficient greater than one increases the unit's receptive field size without increasing the number of parameters.

Equivariance of Convolution Operations

A function \(f\) is equivariant to \(g\) if \(f(g(\mathbf{x})) = g(f(\mathbf{x}))\).

Parameter sharing used in a convolutional layer causes the layer to be equivariant to translation. If an object moves in the input image, its representation will move the same amount in the output.

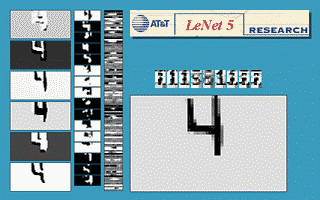

Credits: LeCun et al, Gradient-based learning applied to document recognition, 1998.

Building Convolutional Neural Networks

Architectures, depth, and interpretation.

Putting It Together — Convolutional Neural Networks

A convolutional network is generically defined as a composition of convolutional layers (CONV), pooling layers (POOL), linear rectifiers (RELU) and fully connected layers (FC).

CNN Architectures

The most common convolutional network architecture follows the pattern

INPUT → [[CONV → RELU]*N → POOL?]*M → [FC → RELU]*K → FC

  • * indicates repetition, POOL? indicates an optional pooling layer, FC is a fully connected (nn.Linear) layer
  • \(N \geq 0\) (usually \(N \leq 3\)), \(M \geq 0\), \(K \geq 0\) (usually \(K \leq 2\))
  • the last fully connected layer holds the output (e.g., the class scores)

Examples:

  • INPUT → FC   (linear classifier, \(N\!=\!M\!=\!K\!=\!0\))
  • INPUT → [FC → RELU]*K → FC   (K-layer MLP)
  • INPUT → [CONV → RELU → POOL]*2 → FC → RELU → FC
  • INPUT → [[CONV → RELU]*2 → POOL]*3 → [FC → RELU]*2 → FC

ResNet — He et al., 2015

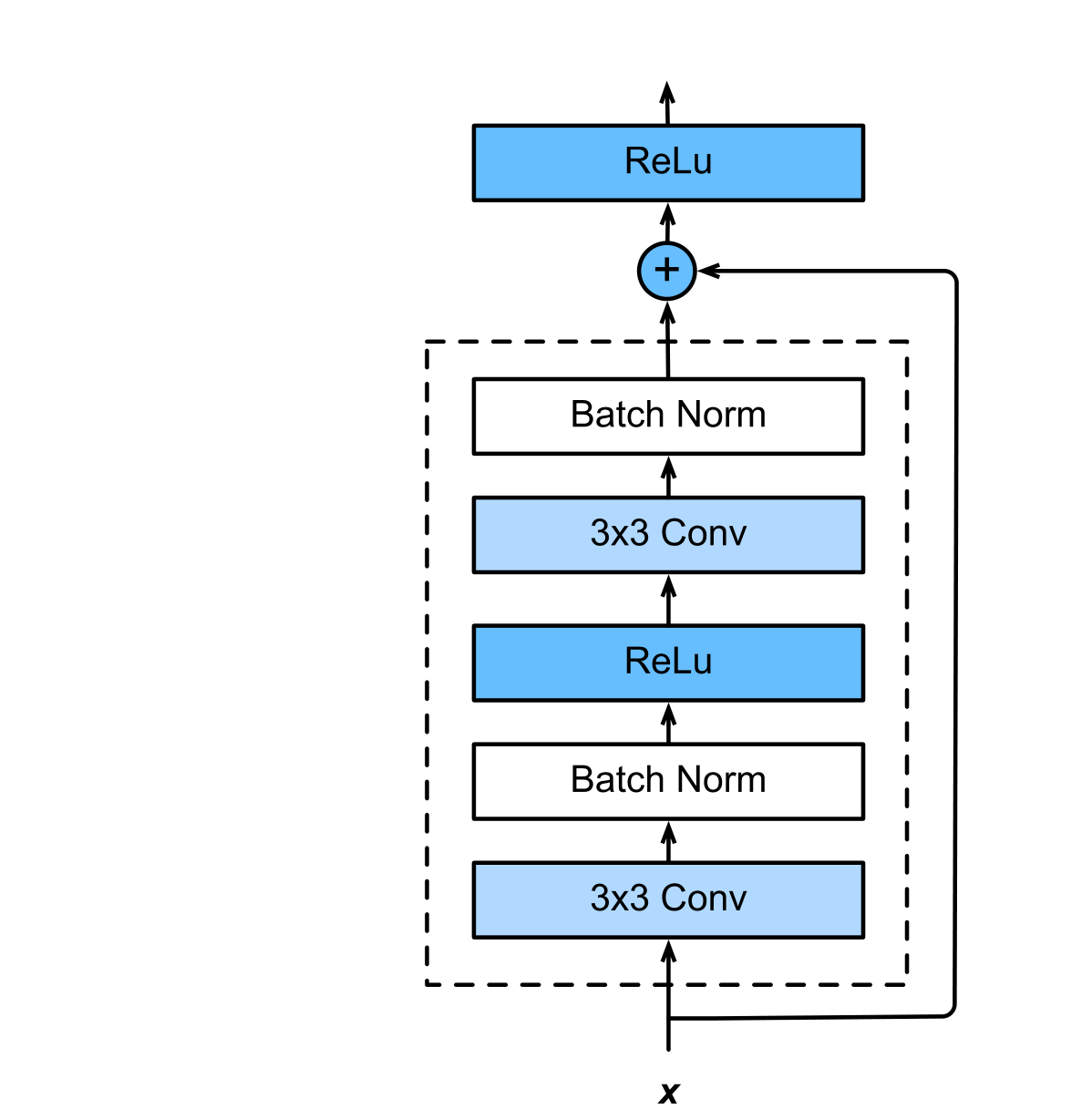

A residual block with skip connection.

Very deep networks (up to 152 layers) made possible by residual blocks.

The skip connection adds the input directly to the output: \(f(\mathbf{x}) = \mathbf{x} + g(\mathbf{x})\).

The network only needs to learn the residual \(g(\mathbf{x})\). If \(g \approx 0\), the block acts as identity — adding more layers can never hurt.

Why it matters: without skip connections, very deep networks suffer from vanishing gradients. The skip path lets gradients flow directly through, enabling training of 100+ layer networks.

Credits: Dive Into Deep Learning, 2020.

Architecture Zoo — Historical Evolution

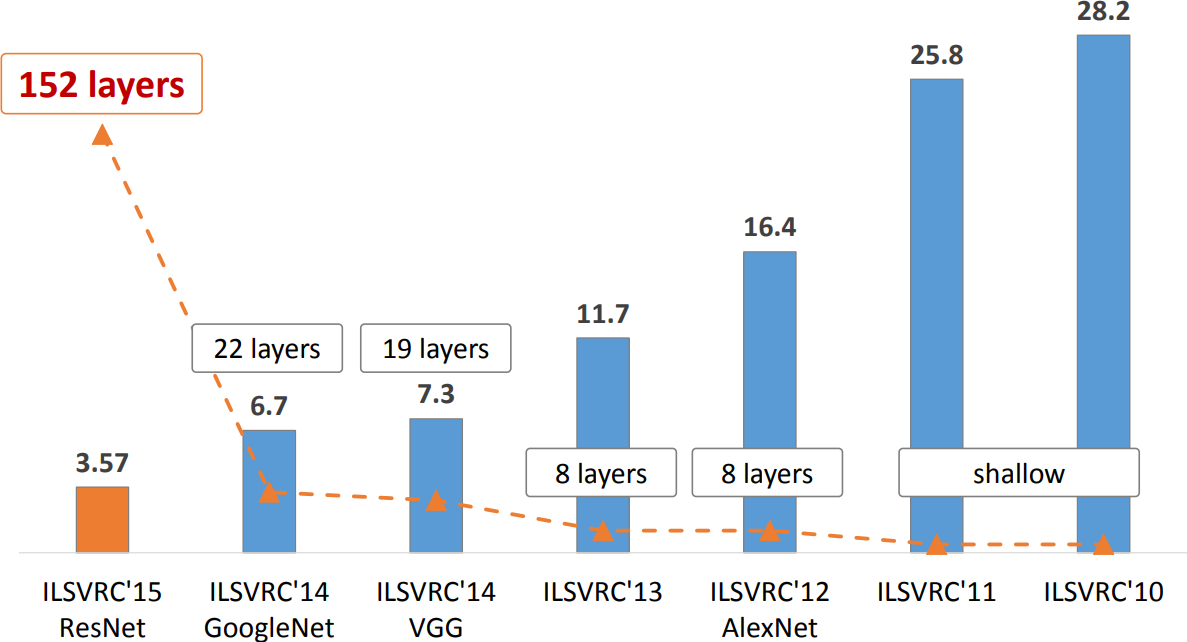

Top-5 error on ImageNet vs time and network depth. Deeper networks with skip connections dominate.

↓ Scroll down for individual architectures.

AlexNet — Krizhevsky et al., 2012

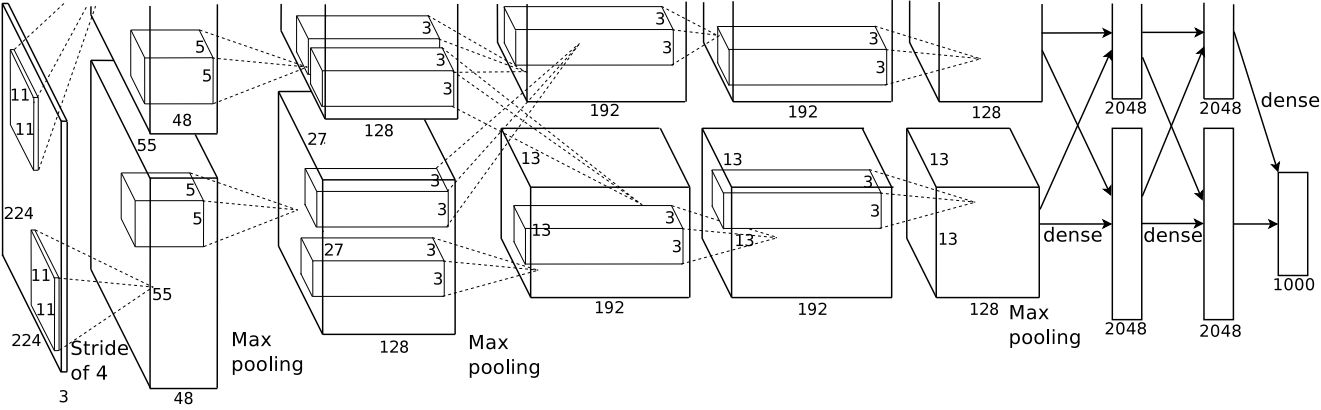

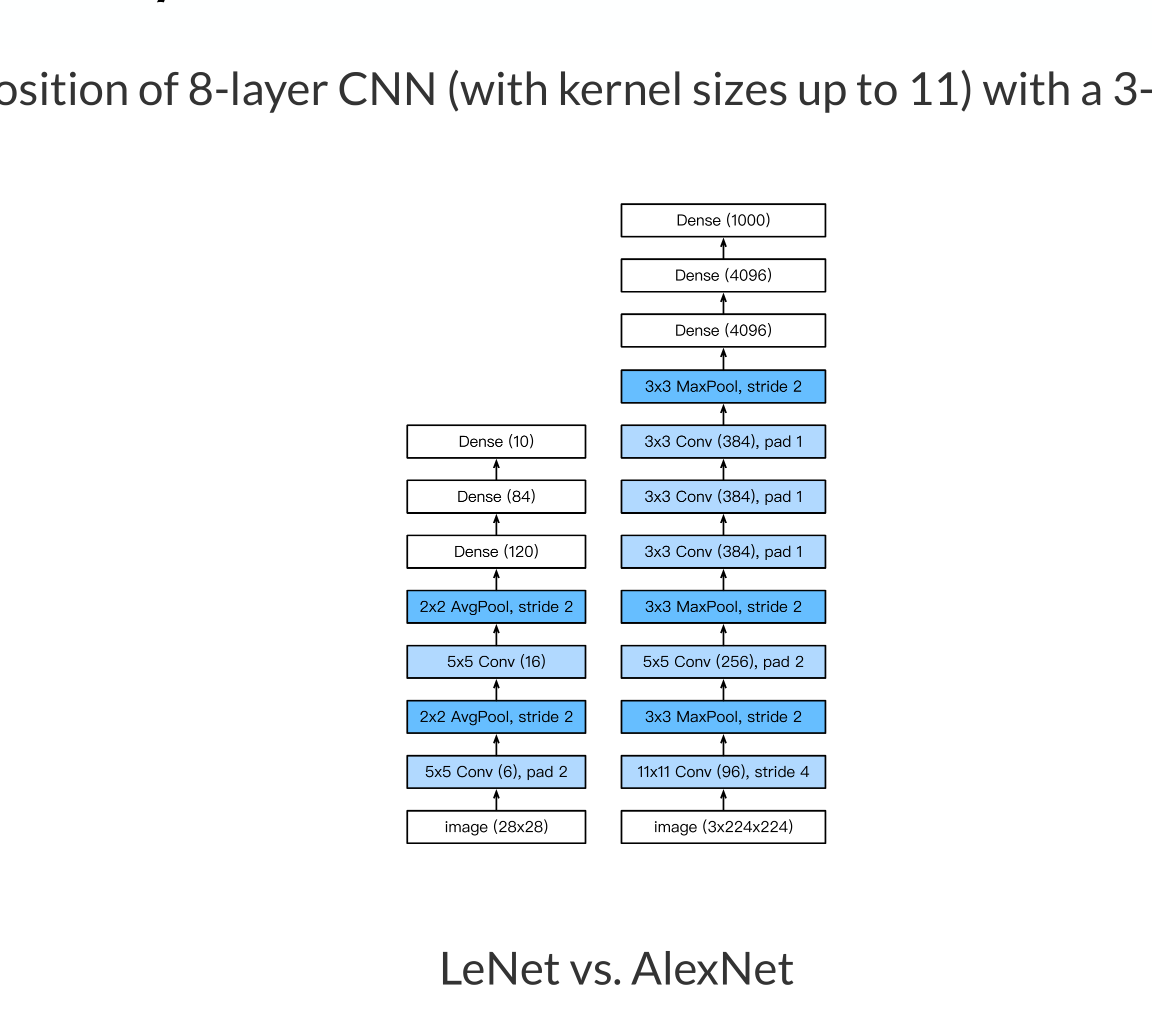

Composition of 8-layer CNN (with kernel sizes up to 11) with a 3-layer MLP. The number of parameters in AlexNet is 1000 times larger than in LeNet.

Credits: Dive Into Deep Learning, 2020.

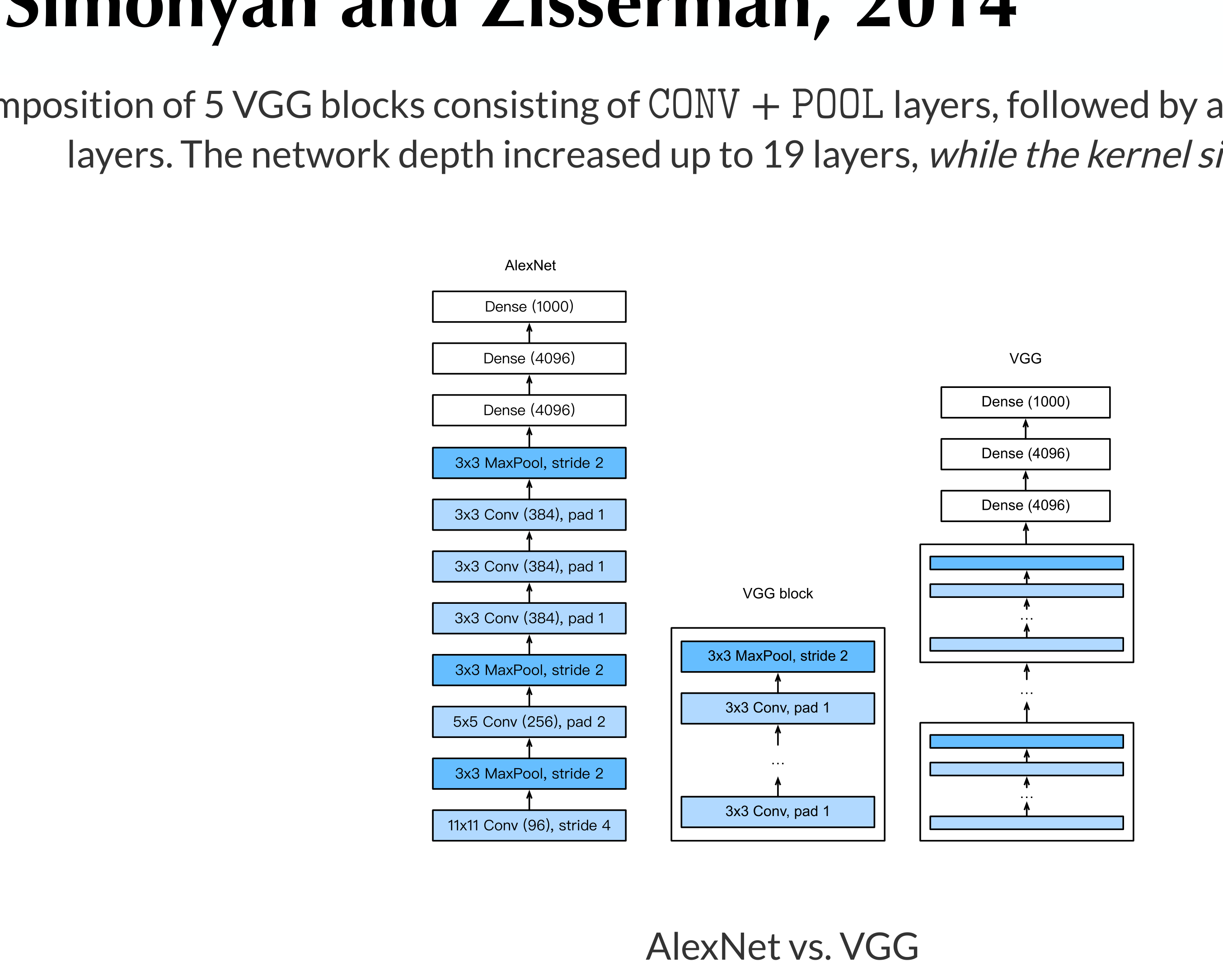

VGG — Simonyan and Zisserman, 2014

Composition of 5 VGG blocks consisting of CONV + POOL layers, followed by fully connected layers. Network depth increased up to 19 layers, while the kernel sizes reduced to 3.

Credits: Dive Into Deep Learning, 2020.

Effective Receptive Field

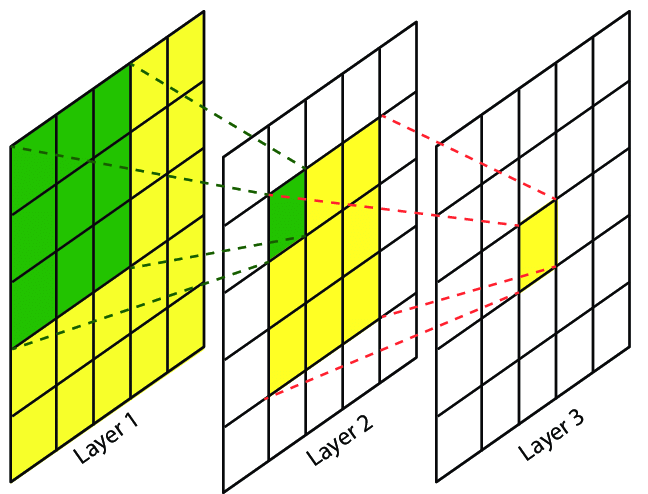

The effective receptive field is the part of the visual input that affects a given unit indirectly through previous convolutional layers. It grows linearly with depth.

E.g., a stack of two \(3 \times 3\) kernels of stride 1 has the same effective receptive field as a single \(5 \times 5\) kernel, but fewer parameters.

Interpreting CNNs

What do convolutional networks learn?

Under the Hood — Overview

Understanding what is happening in deep neural networks after training is complex and the tools we have are limited.

In the case of convolutional neural networks, we can look at:

  • the network's kernels as images
  • internal activations on a single sample as images
  • distributions of activations on a population of samples
  • derivatives of the response with respect to the input
  • maximum-response synthetic samples

Credits: Francois Fleuret, EE559 Deep Learning, EPFL.

Visualising Kernels

LeNet, Layer 1 — first convolutional layer, all filters:

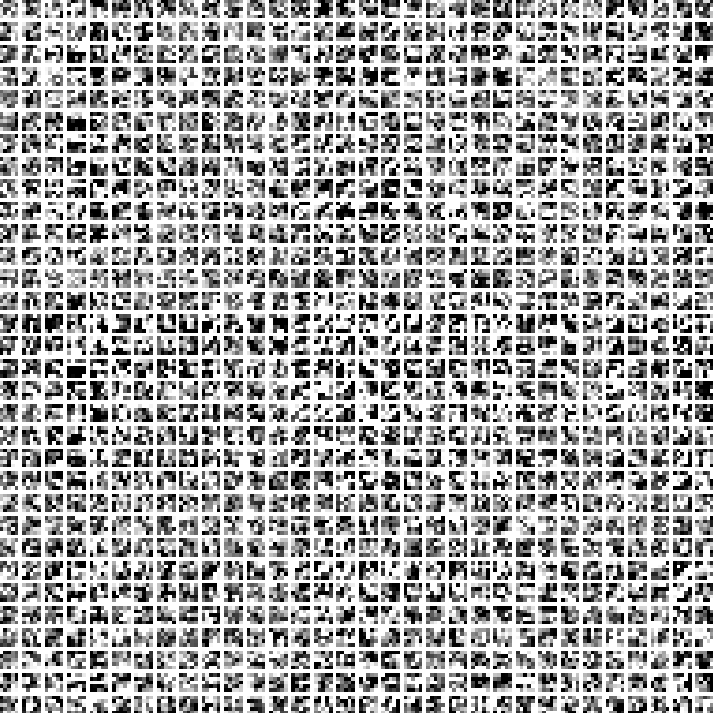

LeNet, Layer 2 — second convolutional layer, first 32 filters:

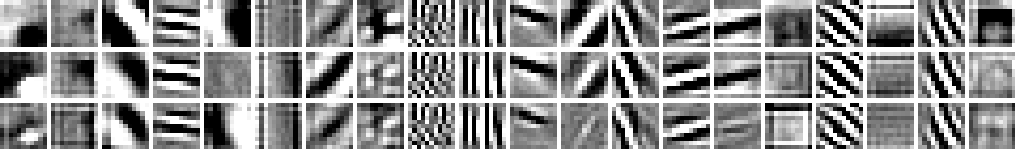

AlexNet, Layer 1 — first convolutional layer, first 20 filters:

Credits: Francois Fleuret, EE559 Deep Learning, EPFL.

Maximum Response Signals — What Does a Neuron "Want to See"?

Goal: find the input image \(\mathbf{x}\) that makes a specific neuron (at layer \(\ell\), channel \(d\)) fire as strongly as possible.

Step 1: Start from random noise:
\(\quad \mathbf{x}_0 \sim U[0, 1]^{C \times H \times W}\)

Step 2: Define objective — how strongly does neuron \((\ell, d)\) respond?
\(\quad \mathcal{L}_{\ell,d}(\mathbf{x}) = ||\mathbf{h}_{\ell,d}(\mathbf{x})||_2\)

Step 3: Gradient ascent on the image (not the weights!):
\(\quad \mathbf{x}_{t+1} = \mathbf{x}_t + \gamma \,\nabla_{\mathbf{x}} \mathcal{L}_{\ell,d}(\mathbf{x}_t)\)

After many iterations, \(\mathbf{x}\) converges to a synthetic image showing what that neuron has learned to detect.

Key insight: during training we optimise weights to minimise loss. Here we freeze the weights and optimise the input image to maximise activation.

What we expect:

  • Early layers → edges, colours, gradients
  • Middle layers → textures, patterns
  • Deep layers → object parts, shapes

Confirms the "pixels to semantics" story!

Hierarchical Composition of Features

  • The first layers appear to encode direction and colour.
  • The direction and colour filters get combined into grid and spot textures.
  • These textures gradually get combined into increasingly complex patterns.

The network appears to learn a hierarchical composition of patterns.

Credits: Zeiler & Fergus 2013.

DeepDream — Pushing It to the Extreme

The same gradient ascent technique, applied to maximise activations across an entire network on a real image.

The network hallucinates the features it has learned — eyes, faces, animal parts — into the image.

Summary

Motivation

Images = 3 colour channels.
CNNs turn these into many
semantic channels.
Convolutions

Learned kernels slide across
all channels. Conv → ReLU →
MaxPool is the building block.
Architectures

LeNet-5: the basic pattern.
ResNet: skip connections
enable very deep networks.
Interpretation

Early layers: edges, colours.
Deep layers: shapes, objects.
Pixels → semantics, confirmed.
Key takeaway: CNNs trade spatial resolution for semantic richness — resolution goes down, abstraction goes up.

Next: hands-on — build a CNN from scratch in PyTorch (Exercise Sheet 3).
